It was the summer of 1991 and I stood in front of the first hedge maze I had ever seen before. What could be more fun to a young boy than getting lost in a hedge maze and finding your way out? I had a simple plan, get totally lost as quickly as possible by making random choices. Then I would take my time to find my way out. So, I ran straight in at full speed, turning left or right at each turn without thinking about it.

The plan completely backfired. By a complete fluke, within a minute or two, I made it to the exit of the maze. I couldn't believe that I got straight to the end of the maze by making random decisions.

Making random decisions may work by fluke in a hedge maze, but you can't make a random decision for a drag coefficient for an oceanographic buoy. These buoys can be substantial structures. Because they're substantial, the drag forces on them can also be substantial. If they have even remotely complex shapes, it's difficult to really know what the drag coefficient is.

We're going to look at three ways to evaluate oceanographic buoy drag coefficients. These ways increase in complexity but still give you something to start with. These three ways to determine the drag coefficient are using:

- lookup tables
- computational fluid dynamics (CFD)
- field deployment data

**Lookup tables are a fantastic starting point**

These lookup tables provide drag coefficients for quite specific shapes and geometries. Most helpfully, there are often tables with parameters that help you zero in on your particular shape. For example, a lookup table for a squat cylinder shows a few different values of drag coefficient based on the length to diameter ratio. Lookup tables are easy to use. You find the shape that is closest to what you're working with, and then that's the drag coefficient that you use in your calculations.

**Where do these lookup tables come from?**

These lookup tables are the results of decades of research and experiments. These experiments measured the total drag force on these shapes in different flow conditions. The resulting drag coefficient is computed from the data and then published in the lookup tables for future reference.

**But there are also quite a few limitations**

It's rare to get an exact match to the shape you want. Even with basic shapes like cylinders, your particular form may be out of range of the lookup table. Or you may have only a few examples to work with from the lookup tables you have on hand.

So, while lookup tables give you a starting point, it still leaves some uncertainty. This takes us to the next approach that can be used to resolve the drag coefficient: computational fluid dynamics (CFD).

**You can work directly with your specific buoy geometry**

Previously, we learned that lookup tables were produced by decades of painstaking research and experiments to measure the total drag force on actual structures. CFD software anticipates the dynamics of fluids flowing past structures. CFD allows you to run your experiment on your own specific structure directly on your computer.

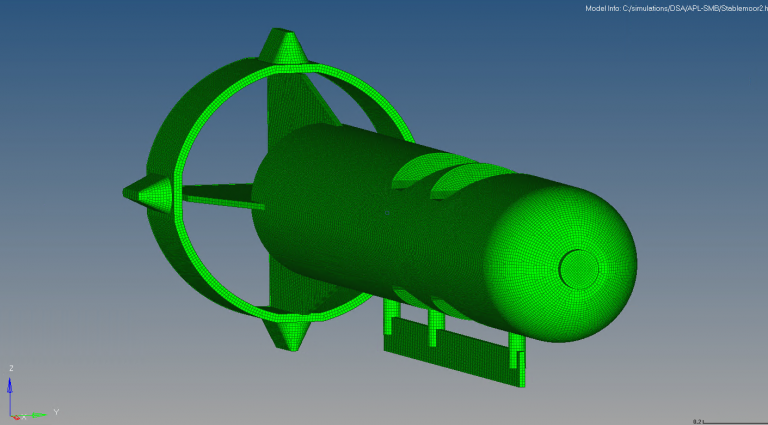

Pre-processing StableMoor geometry in Altair HyperMesh in preparation for CFD analysis in Altair AcuSolve

All CFD tools are set up to work with any geometry put directly into the program. Software tools like

__Altair HyperMesh__make it easy to work with CAD files directly. This prepares the geometry for use in a CFD program like

__Altair AcuSolve__. Regardless of the CFD program used, once the geometry is in place, you can set the water flow conditions you want to check. Then, when you run the program, it calculates the corresponding drag coefficient for that geometry. This is a significant improvement from lookup tables because you can use much more precise geometry. You aren't left trying to guess which shape best fits your specific oceanographic buoy.

**But there's a different kind of uncertainty when working with CFD**

As incredible as CFD tools are, the dynamics of fluid flows can be awesomely complex. There are also many inputs and settings for the CFD flow physics models. In some particular circumstances, some of these settings can make substantial changes in the output of the drag coefficient calculations. So how do we deal with this new kind of uncertainty? This brings us to the next and final section, validation with field deployment data.

**Nothing is more real than reality**

If you put an oceanographic buoy in a known water current and you can measure the total drag force, well, you've got the actual drag coefficient! Of course, it makes sense that this would eliminate those niggling uncertainties that remain with the previous two methods. We are indeed working with the exact shape, unlike the lookup tables. And we are working with real water flows, unlike an approximation of the water flow as calculated by CFD.

**This creates a bit of a chicken and egg problem**

We do need to know in advance what the drag coefficient is before we design and deploy the mooring. Otherwise, the mooring is at risk if it deflects far too much, or if it breaks. However, these risks can be controlled with a staged approach using a smaller mooring in lower flow speeds, or even scale model tests in a flow tank. These scale model tests are indeed the kinds of tests done over decades of research to make lookup tables.

**What about the cost of a field deployment?**

Of course, making a field deployment is incredibly complex and expensive. You need a ship and crew to deploy the equipment. The equipment itself is costly as well. It can be a complicated job to just measure the flow at a site, never mind also some characteristic of the mooring response. But that only shows how unique and valuable the knowledge of the specific drag coefficient is for that particular structure. And that drag coefficient can be used again for new mooring designs and for different locations with different flow speeds in the future.

**Let's look at a specific example**

DeepWater Buoyany's

__StableMoor Buoy__is a streamlined float designed to work in high flow conditions. It's a fairly specific shape. When reviewing lookup tables, there are a few examples that are pretty close, but not exact. It is more like a rounded rectangle, or cylinder? How can the tail ring be accounted for? There's only so much we can answer using this approach. The rounded block has a range of 0.25 and 0.55, so we could try 0.55. It may seem a bit random, but that's the best we can do at this stage. The next stage is using a CFD software tool.

We used the CFD program

__Altair AcuSolve__to compute the drag forces on the actual geometry of a StableMoor Buoy in a few flow speed conditions. Based on the projected area from the main hull, the CFD calculated drag coefficient is 1.0. This is higher than the rounded block lookup table values because the tail ring adds extra drag to the system. At this stage we have a good idea of the buoy drag coefficient to use. To improve on this, the final stage is a validation using field data.

Lookup table drag coefficient values for rounded block from the Applied Fluid Dynamics Handbook by Blevins

Oceanographers at the

__UW Applied Physics Laboratory__deployed a short mooring with a StableMoor Buoy in a high flow tidal channel. The onboard sensors measured the flow velocity as well as the altitude of the StableMoor Buoy off the seabed. As the total drag forces on the mooring and StableMoor Buoy deflect the system, the altitude of the StableMoor Buoy decreases. This reduction in altitude is often called knockdown.

We reconstructed the mooring in ProteusDS to compare the results to the measured knockdown. Using a drag coefficient of 1.0 for the StableMoor Buoy showed knockdown within the measured range of values from the field deployment: at about 2m/s flow speed, the system shows about a 1m knockdown. So, this looks like the CFD software tool did a pretty good job. This builds confidence to use the drag coefficient and the CFD analysis process again for other mooring designs.

**We covered a lot of ground in our search for ways to find a drag coefficient**

Now it's time for a quick review. A starting point to resolve a drag coefficient is to use lookup tables. These represent decades of work from real experiments on various shapes. But often there's not an exact fit to the oceanographic buoy geometry you're working with.

The next step is to try using a CFD software tool. These software tools can use the specific buoy geometry you're working with and provide you with the drag coefficient. While these software tools are powerful, they are still an approximation to potentially very complex fluid physics.

Indeed, there's no replacement for reality, and so the final step would be some kind of real measurement of the buoy in actual flow conditions. While this can be a massive effort, it does provide a valuable validation of the drag coefficient for a particular buoy that can be used again in similar conditions.

**Working with drag coefficients may make you feel like you are running around in a maze**

You can't just pick a drag coefficient randomly, rush on to the next step in the mooring design process, and expect success. You may be doing this if you have only a limited lookup table to work with.
