Using a Non-radiating Network to Match a Dipole Antenna

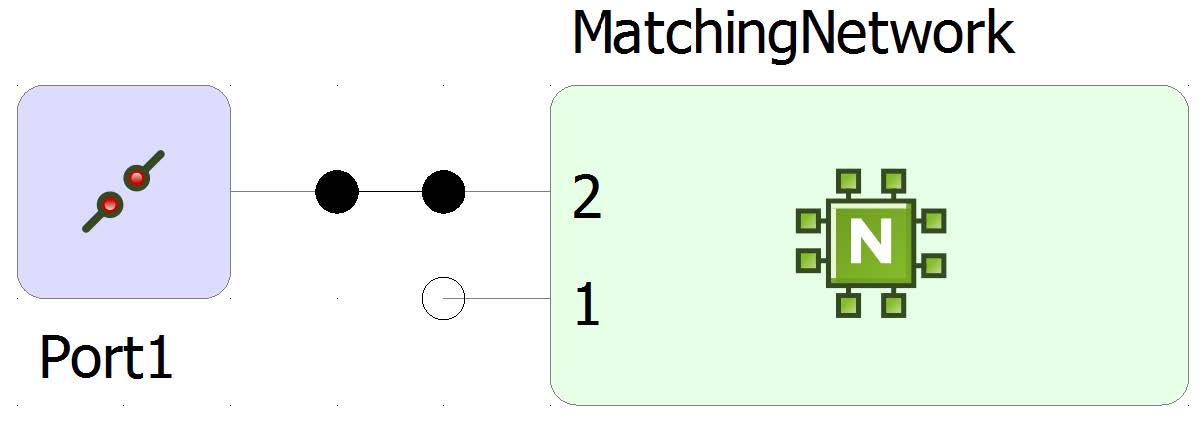

Match a short dipole for resonance at 1.4 GHz with an LC matching section. The matched network is modeled using a Spice circuit and S-parameters.
